CPP Smart Pointers in Action

• Implementation (std::shared_ptr)
  • shard_ptr 的存储结构
  • shared_ptr 的两种初始化方式
  • shared_ptr 的销毁方式
  • 线程安全 (std::shared_ptr)
  • 性能开销 (std::shared_ptr)
  • 性能开销原因分析 (std::shared_ptr)
• Implementation (std::unique_ptr)
• Implementation (std::weak_ptr)
• Implementation (std::auto_ptr)
• 用法示例
  • std::shared_ptr
  • std::unique_ptr
  • std::weak_ptr
• Tips
  • 自定义 custom_deleter
  • 检查 shared_ptr 对象是否被释放
• Reference

Implementation (std::shared_ptr)

std::shared_ptr is a smart pointer that retains(保持，保存) shared ownership of an object through a pointer. Several shared_ptr objects may own the same object. The object is destroyed and its memory deallocated when either of the following happens:

#include <iostream>
#include <memory>

class A {
  public: A() {
      std::cout << "A()\n";
    }
    ~A() {
      std::cout << "~A()\n";
    }
};

int main() {
  std::shared_ptr<A> ptr1(new A, [](A * p) {
    delete p;
    std::cout << "over\n";
  });
  std::shared_ptr < A > ptr2 = ptr1;
  std::cout << ptr1.use_count() << std::endl;
}
/*
A()
2
~A()
over
*/

• the last remaining shared_ptr owning the object is destroyed; (当所持对象的最后一个 shared_ptr 销毁时，才对所持的对象进行销毁)

#include <iostream>
#include <memory>

class A {
  public: A() {
      std::cout << "A()\n";
    }
    ~A() {
      std::cout << "~A()\n";
    }
};

int main() {
  {
    std::shared_ptr<A> ptr1(new A, [](A * p) {
      delete p;
      std::cout << "over\n";
    });
    std::cout << ptr1.use_count() << std::endl;
  }

  std::cout << "end\n";
}
/*
A()
1
~A()
over
end
*/

• the last remaining shared_ptr owning the object is assigned another pointer via operator= or reset(). (当所持对象的最后一个 shared_ptr 通过operator=赋值为另一个指针，或者reset()(replaces the managed object)替换为另一个对象时，才对所持的对象进行销毁)

#include <iostream>
#include <memory>

class A {
  public: A() {
    std::cout << "A()\n";
  }~A() {
    std::cout << "~A()\n";
  }
};

int main() {
  std::shared_ptr<A> ptr1(new A, [](A * p) {
    delete p;
    std::cout << "over\n";
  });
  std::cout << ptr1.use_count() << std::endl;
  ptr1 = nullptr;
  std::cout << ptr1.use_count() << std::endl;
}
/*
A()
1
~A()
over
0
*/

#include <iostream>
#include <memory>

class A {
  public: A() {
    std::cout << "A()\n";
  }~A() {
    std::cout << "~A()\n";
  }
};

int main() {
  std::shared_ptr<A> ptr1(new A, [](A * p) {
    delete p;
    std::cout << "over\n";
  });
  std::cout << ptr1.use_count() << std::endl;

  std::cout << "before reset\n";
  ptr1.reset(new A);
  std::cout << "after reset\n";
}
/*
A()
1
before reset
A()
~A()
over
after reset
~A()
*/

The object is destroyed using delete-expression or a custom deleter that is supplied to shared_ptr during construction.

// Constructs a shared_ptr with ptr as the pointer to the managed object.
template< class Y >
explicit shared_ptr( Y* ptr );

template< class Y, class Deleter >
shared_ptr( Y* ptr, Deleter d );

template< class Y, class Deleter, class Alloc >
shared_ptr( Y* ptr, Deleter d, Alloc alloc );

shard_ptr 的存储结构

In a typical implementation, std::shared_ptr holds only two pointers: (refer std::shared_ptr)

• the stored pointer (one returned by get())
• a pointer to control block

The control block is a dynamically-allocated object that holds:

• either a pointer to the managed object or the managed object itself; (对应下述shared_ptr两种不同的初始化创建方式)
• the deleter (type-erased);
• the allocator (type-erased);
• the number of shared_ptrs that own the managed object;
• the number of weak_ptrs that refer to the managed object.

shared_ptr 的两种初始化方式

方式一：一次分配 (推荐方式)

When shared_ptr is created by calling std::make_shared or std::allocate_shared, the memory for both the control block and the managed object is created with a single allocation. The managed object is constructed in-place in a data member of the control block.

方式二：两次分配

When shared_ptr is created via one of the shared_ptr constructors, the managed object and the control block must be allocated separately. In this case, the control block stores a pointer to the managed object.

shared_ptr 的销毁方式

The destructor of shared_ptr decrements the number of shared owners of the control block. If that counter reaches zero, the control block calls the destructor of the managed object. The control block does not deallocate itself until the std::weak_ptr counter reaches zero as well.

线程安全 (std::shared_ptr)

To satisfy thread safety requirements, the reference counters are typically incremented using an equivalent of std::atomic::fetch_add with std::memory_order_relaxed(松散内存序，只用来保证对原子对象的操作是原子的) (decrementing requires stronger ordering to safely destroy the control block).

All member functions (including copy constructor and copy assignment) can be called by multiple threads on different instances of shared_ptr without additional synchronization even if these instances are copies and share ownership of the same object.

参考：std::shared_ptr thread safety explained：

• Standard guarantees that reference counting is handled thread safe and it’s platform independent, right?

Correct, shared_ptrs use atomic increments/decrements of a reference count value.

• Similar issue - standard guarantees that only one thread (holding last reference) will call delete on shared object, right?

The standard guarantees only one thread will call the delete operator on a shared object. I am not sure if it specifically specifies the last thread that deletes its copy of the shared pointer will be the one that calls delete (likely in practice this would be the case).

• shared_ptr does not guarantee any thread safety for object stored in it?

No they do not, the object stored in it can be simultaneously edited by multiple threads.

参考：std::shared_ptr thread safety

std::shared_ptr is not thread safe.

A shared pointer is a pair of two pointers, one to the object and one to a control block (holding the ref counter, links to weak pointers …).

There can be multiple std::shared_ptr and whenever they access the control block to change the reference counter it’s thread-safe but the std::shared_ptr itself is NOT thread-safe or atomic.

If you assign a new object to a std::shared_ptr while another thread uses it, it might end up with the new object pointer but still using a pointer to the control block of the old object => CRASH.

性能开销 (std::shared_ptr)

使用Quick C++ Benchmark GCC8.1 -O2 编译测试对比：

#include <memory>

static void Test1(benchmark::State& state) {
  // Code inside this loop is measured repeatedly
  for (auto _ : state) {
    std::shared_ptr<std::string> s1 = std::make_shared<std::string>("hello");
    // Make sure the variable is not optimized away by compiler
    benchmark::DoNotOptimize(s1);
  }
}
// Register the function as a benchmark
BENCHMARK(Test1);

static void Test2(benchmark::State& state) {
  // Code before the loop is not measured
  for (auto _ : state) {
    std::string* s2 = new std::string("hello");
    delete s2;
    benchmark::DoNotOptimize(s2);
  }
}
BENCHMARK(Test2);

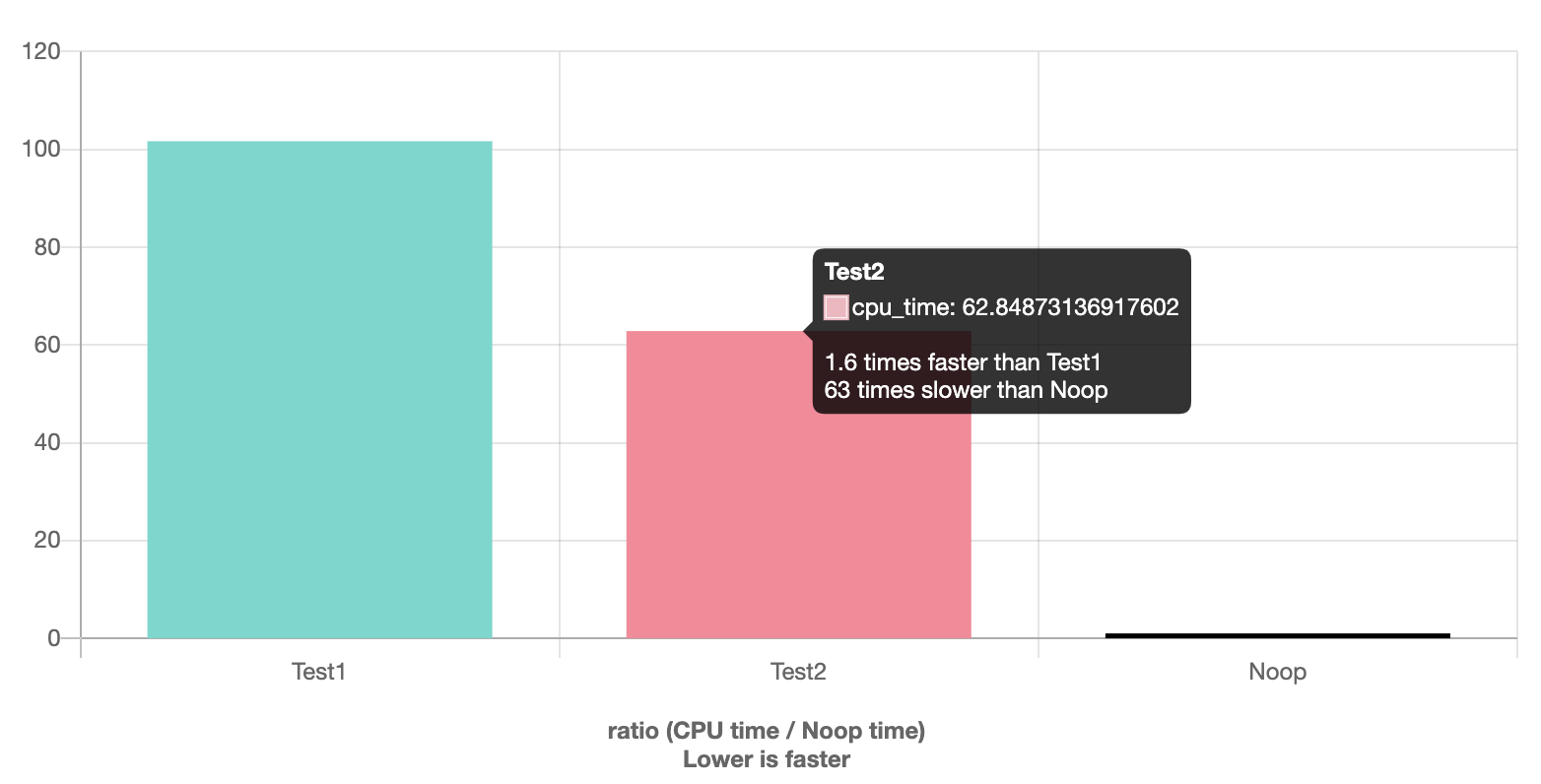

对比结果：std::shared_ptr<std::string>比std::string*要慢1.6倍。

#include <memory>

static void Test1(benchmark::State& state) {
  // Code inside this loop is measured repeatedly
  for (auto _ : state) {
    std::shared_ptr<int> a = std::make_shared<int>(0);
    // Make sure the variable is not optimized away by compiler
    benchmark::DoNotOptimize(a);
  }
}
// Register the function as a benchmark
BENCHMARK(Test1);

static void Test2(benchmark::State& state) {
  // Code before the loop is not measured
  for (auto _ : state) {
    int* a = new int(0);
    delete a;
    benchmark::DoNotOptimize(a);
  }
}
BENCHMARK(Test2);

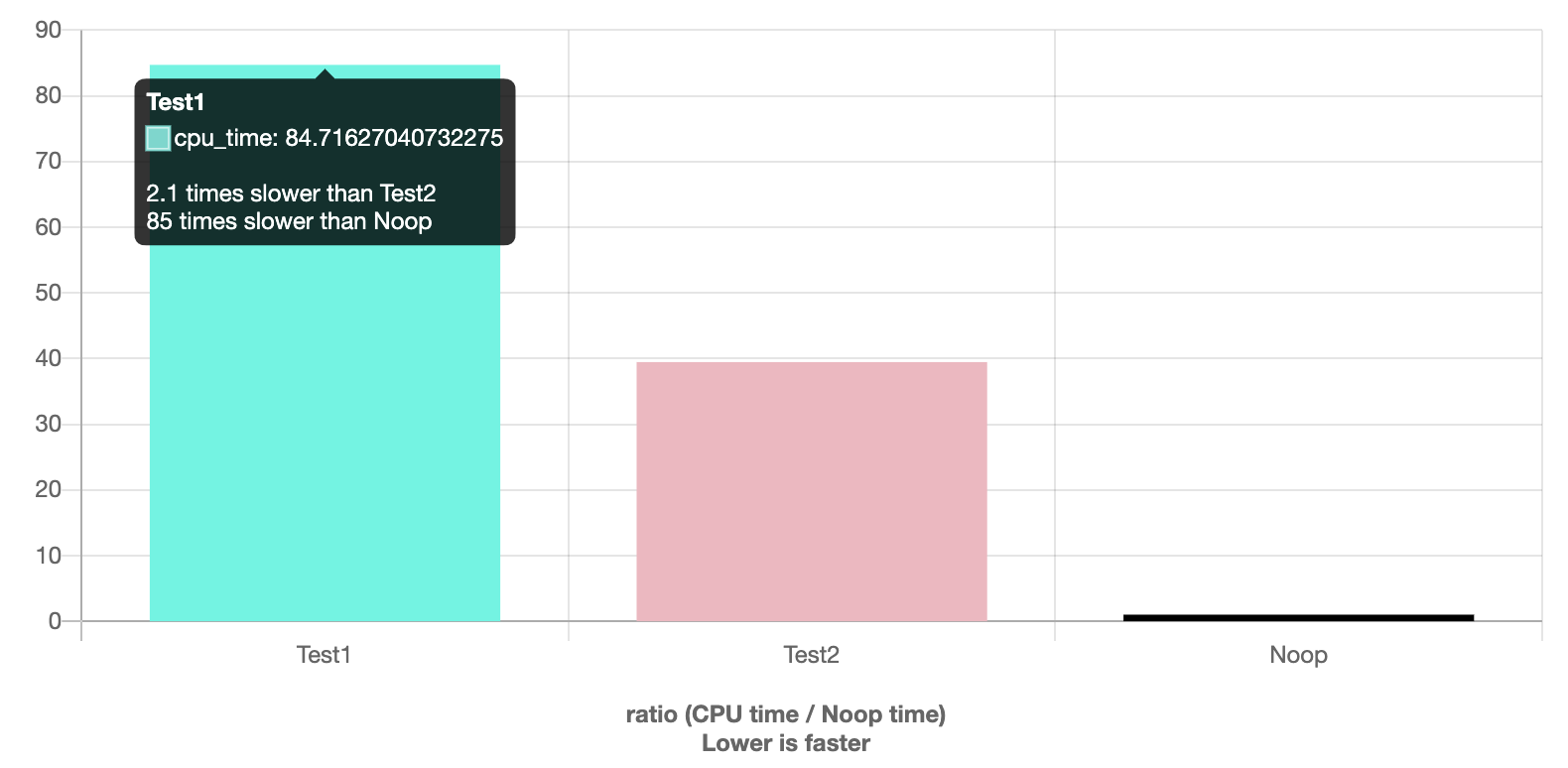

使用-O2优化编译：std::shared_ptr<int>比int*要慢2.1倍。

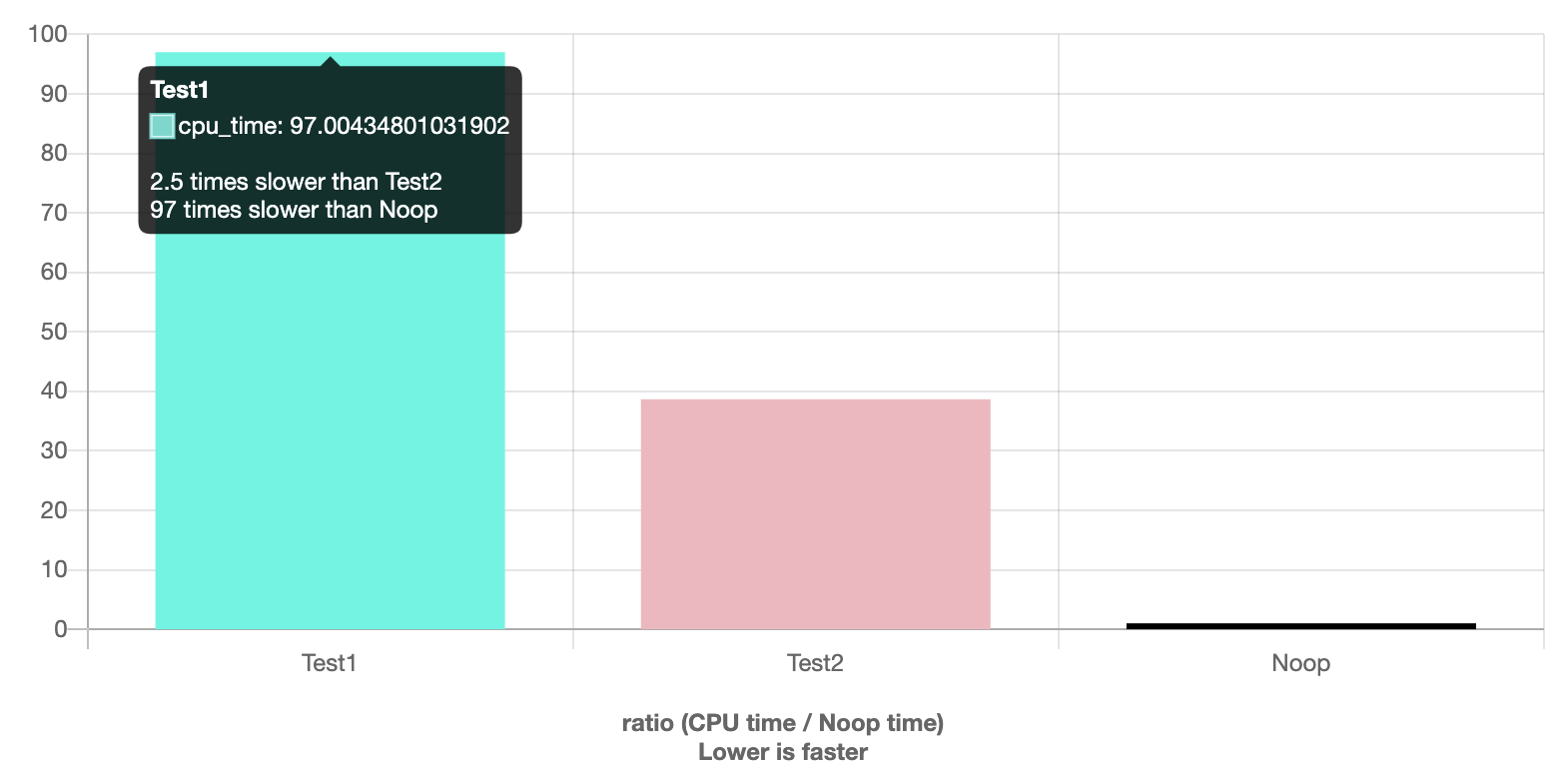

使用-O3优化编译：std::shared_ptr<int>比int*要慢2.5倍。

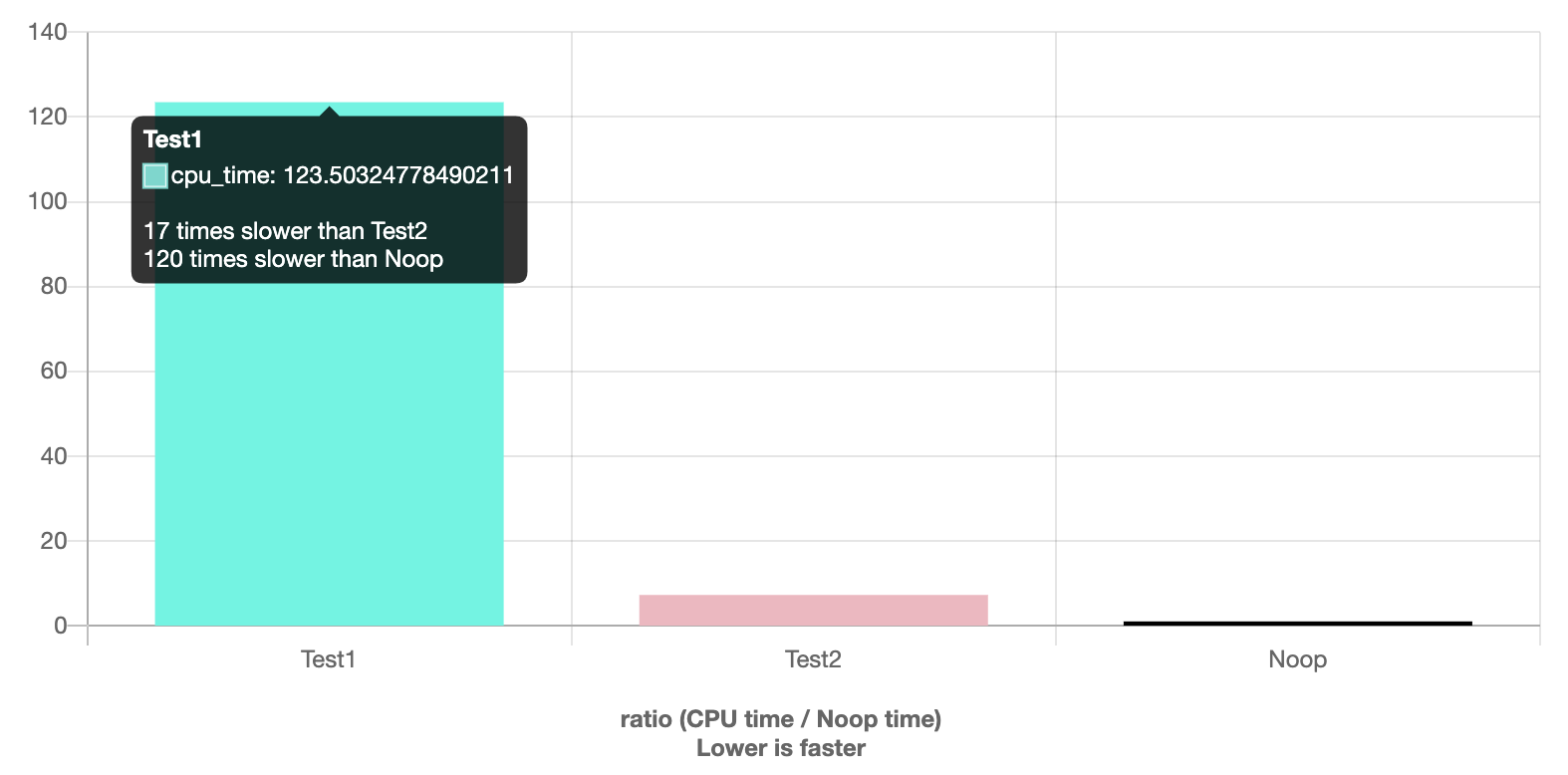

不使用编译优化对比：std::shared_ptr<int>比int*要慢17倍。

性能开销原因分析 (std::shared_ptr)

通过How much is the overhead of smart pointers compared to normal pointers in C++? 文章：

问题：How much is the overhead of smart pointers compared to normal pointers in C++11? In other words, is my code going to be slower if I use smart pointers, and if so, how much slower? Specifically, I’m asking about the C++11 std::shared_ptr and std::unique_ptr.

观点1:

• std::shared_ptr always has memory overhead for reference counter, though it is very small.
• std::shared_ptr has time overhead in constructor (to create the reference counter), in destructor (to decrement the reference counter and possibly destroy the object) and in assignment operator (to increment the reference counter). Due to thread-safety guarantees(保证线程安全) of std::shared_ptr, these increments/decrements are atomic, thus adding some more overhead.
• Note that none of them has time overhead in dereferencing (in getting the reference to owned object), while this operation seems to be the most common for pointers.

To sum up, there is some overhead, but it shouldn’t make the code slow unless you continuously create and destroy smart pointers.

观点2:

My answer is different from the others and i really wonder if they ever profiled code.

shared_ptr has a significant overhead for creation because of it’s memory allocation for the control block (which keeps the ref counter and a pointer list to all weak references). It has also a huge memory overhead because of this and the fact that std::shared_ptr is always a 2 pointer tuple (one to the object, one to the control block).

If you pass a shared_pointer to a function as a value parameter then it will be at least 10 times slower than a normal call and create lots of codes in the code segment for the stack unwinding. If you pass it by reference you get an additional indirection which can be also pretty worse in terms of performance.

Thats why you should not do this unless the function is really involved in ownership management. Otherwise use “shared_ptr.get()”. It is not designed to make sure your object isn’t killed during a normal function call.

If you go mad and use shared_ptr on small objects like an abstract syntax tree in a compiler or on small nodes in any other graph structure you will see a huge perfomance drop and a huge memory increase. I have seen a parser system which was rewritten soon after C++14 hit the market and before the programmer learned to use smart pointers correctly. The rewrite was a magnitude slower then the old code.

t is not a silver bullet and raw pointers aren’t bad by definition either. Bad programmers are bad and bad design is bad. Design with care, design with clear ownership in mind and try to use the shared_ptr mostly on the subsystem API boundary.

If you want to learn more you can watch Nicolai M. Josuttis good talk about “The Real Price of Shared Pointers in C++”

It goes deep into the implementation details and CPU architecture for write barriers, atomic locks etc. once listening you will never talk about this feature being cheap. If you just want a proof of the magnitude slower, skip the first 48 minutes and watch him running example code which runs upto 180 times slower (compiled with -O3) when using shared pointer everywhere.

And if you ask about “std::unique_ptr” than visit this talk “CppCon 2019: Chandler Carruth “There Are No Zero-cost Abstractions”

Its just not true, that unique_ptr is 100% cost free.

观点3:

As with all code performance, the only really reliable means to obtain hard information is to measure and/or inspect machine code.

• You can expect some overhead in debug builds, since e.g. operator-> must be executed as a function call so that you can step into it (this is in turn due to general lack of support for marking classes and functions as non-debug).

• For shared_ptr you can expect some overhead in initial creation, since that involves dynamic allocation of a control block, and dynamic allocation is very much slower than any other basic operation in C++ (do use make_shared when practically possible, to minimize that overhead).

• Also for shared_ptr there is some minimal overhead in maintaining a reference count, e.g. when passing a shared_ptr by value, but there’s no such overhead for unique_ptr.

The international C++ standardization committee has published a technical report on performance, but this was in 2006, before unique_ptr and shared_ptr were added to the standard library. Still, smart pointers were old hat at that point, so the report considered also that. Quoting the relevant part:

“if accessing a value through a trivial smart pointer is significantly slower than accessing it through an ordinary pointer, the compiler is inefficiently handling the abstraction. In the past, most compilers had significant abstraction penalties and several current compilers still do. However, at least two compilers have been reported to have abstraction penalties below 1% and another a penalty of 3%, so eliminating this kind of overhead is well within the state of the art”

As an informed guess, the “well within the state of the art” has been achieved with the most popular compilers today, as of early 2014.

Implementation (std::unique_ptr)

std::unique_ptr is a smart pointer that owns and manages another object through a pointer and disposes of that object when the unique_ptr goes out of scope.

The object is disposed of, using the associated deleter when either of the following happens:

• the managing unique_ptr object is destroyed
• the managing unique_ptr object is assigned another pointer via operator= or reset().

There are two versions of std::unique_ptr:

1. Manages a single object (e.g. allocated with new)
2. Manages a dynamically-allocated array of objects (e.g. allocated with new[]) (支持数组)

The class satisfies the requirements of MoveConstructible and MoveAssignable, but of neither CopyConstructible nor CopyAssignable.

Only non-const unique_ptr can transfer the ownership of the managed object to another unique_ptr. If an object’s lifetime is managed by a const std::unique_ptr, it is limited to the scope in which the pointer was created.

std::unique_ptr is commonly used to manage the lifetime of objects, including:

• providing exception safety to classes and functions that handle objects with dynamic lifetime, by guaranteeing deletion on both normal exit and exit through exception (保障异常安全)

• passing ownership of uniquely-owned objects with dynamic lifetime into functions

• acquiring ownership of uniquely-owned objects with dynamic lifetime from functions

• as the element type in move-aware containers, such as std::vector, which hold pointers to dynamically-allocated objects (e.g. if polymorphic(多态的) behavior is desired)

Implementation (std::weak_ptr)

std::weak_ptr is a smart pointer that holds a non-owning (“weak”) reference to an object that is managed by std::shared_ptr. It must be converted to std::shared_ptr in order to access the referenced object.

std::weak_ptr models temporary ownership: when an object needs to be accessed only if it exists, and it may be deleted at any time by someone else, std::weak_ptr is used to track the object, and it is converted to std::shared_ptr to assume temporary ownership. If the original std::shared_ptr is destroyed at this time, the object’s lifetime is extended until the temporary std::shared_ptr is destroyed as well.

Another use for std::weak_ptr is to break reference cycles formed by objects managed by std::shared_ptr. If such cycle is orphaned (i,e. there are no outside shared pointers into the cycle), the shared_ptr reference counts cannot reach zero and the memory is leaked. To prevent this, one of the pointers in the cycle can be made weak.

Like std::shared_ptr, a typical implementation of weak_ptr stores two pointers:

• a pointer to the control block
• the stored pointer of the shared_ptr it was constructed from

A separate stored pointer is necessary to ensure that converting a shared_ptr to weak_ptr and then back works correctly, even for aliased shared_ptrs. It is not possible to access the stored pointer in a weak_ptr without locking it into a shared_ptr.

Implementation (std::auto_ptr)

// (deprecated in C++11)
// (removed in C++17)
template< class T > class auto_ptr;

// (deprecated in C++11)
// (removed in C++17)
template<> class auto_ptr<void>;

auto_ptr is a smart pointer that manages an object obtained via new expression and deletes that object when auto_ptr itself is destroyed. It may be used to provide exception safety for dynamically allocated objects, for passing ownership of dynamically allocated objects into functions and for returning dynamically allocated objects from functions.

Copying an auto_ptr copies the pointer and transfers ownership to the destination: both copy construction and copy assignment of auto_ptr modify their right-hand arguments (会修改右边的操作数), and the “copy” is not equal to the original. Because of these unusual copy semantics, auto_ptr may not be placed in standard containers. std::unique_ptr is preferred for this and other uses. (since C++11)

void f()
{
    std::auto_ptr<Investment> pInv(createInvestment());

    // do something
    // ...

    // 最后由auto_ptr的析构函数自动删除pInv
}

• 获得资源后立刻放进管理对象内。即，资源取得时机便是初始化时机（Resource Acquisition Is Initialization; RAII）
• 管理对象运用析构函数确保资源被释放。

不论控制流如何离开区块，一旦对象被销毁，其析构函数会被自动调用，于是资源被释放。

注意：由于auto_ptr被销毁时会自动删除它所指之物，所以一定要注意别让多个auto_ptr同时指向同一对象，否则对象会被删除一次以上。为了预防这个问题，auto_ptr有一个特性是，若通过copy构造函数或copy assignment操作符复制它们，它们会变成null，而复制所得的指针将取得资源的唯一拥有权。

// pInv1指向createInvestment返回物
std::auto_ptr<Investment> pInv1(createInvestment());

// 现在pInv2指向对象，pInv1被设为null
std::auto_ptr<Investment> pInv2(pInv1);

// 现在pInv1指向对象，pInv2被设为null
pInv1 = pInv2;

带来的问题：由于STL容器要求其元素发挥“正常的”复制行为，而auto_ptr的这种诡异的复制行为，导致其不符合STL的容器要求。

https://en.cppreference.com/w/cpp/memory/auto_ptr

用法示例

std::shared_ptr

参考：https://en.cppreference.com/w/cpp/memory/shared_ptr

例子1：构造函数

// shared_ptr constructor example
#include <iostream>
#include <memory>

struct C
{
    int* data;
};

int main ()
{
  std::shared_ptr<int> p1;
  std::shared_ptr<int> p2 (nullptr);
  std::shared_ptr<int> p3 (new int);
  std::shared_ptr<int> p4 (new int, std::default_delete<int>());
  std::shared_ptr<int> p5 (new int, [](int* p){delete p;}, std::allocator<int>());
  std::shared_ptr<int> p6 (p5);
  std::shared_ptr<int> p7 (std::move(p6));
  std::shared_ptr<int> p8 (std::unique_ptr<int>(new int));

  std::shared_ptr<C> obj (new C);
  std::shared_ptr<int> p9 (obj, obj->data);

  std::cout << "use_count:\n";
  std::cout << "p1: " << p1.use_count() << '\n';  // 0
  std::cout << "p2: " << p2.use_count() << '\n';  // 0
  std::cout << "p3: " << p3.use_count() << '\n';  // 1
  std::cout << "p4: " << p4.use_count() << '\n';  // 1
  std::cout << "p5: " << p5.use_count() << '\n';  // 2
  std::cout << "p6: " << p6.use_count() << '\n';  // 0
  std::cout << "p7: " << p7.use_count() << '\n';  // 2
  std::cout << "p8: " << p8.use_count() << '\n';  // 1
  std::cout << "p9: " << p9.use_count() << '\n';  // 2
}

例子2：对象管理

#include <iostream>
#include <memory>

class Foo
{
public:
    Foo(int a) : m_a(a) { std::cout << "Foo(" << a << ")\n"; }
    ~Foo() { std::cout << "~Foo(" << m_a << ")\n"; }
    int Get() { return m_a; }
    void Set(int a) { m_a = a; }
private:
    int m_a;
};

int main()
{
    Foo *foo1 = new Foo(1);
    std::cout << "foo1: " <<  foo1 << ", " << foo1->Get() << std::endl;

    {
        std::shared_ptr<Foo> foo2 = std::make_shared<Foo>(2);
        std::cout << "foo2: " << foo2 << ", " << foo2->Get() << std::endl;

        std::cout << "before reset, foo2 use_count: " << foo2.use_count() << std::endl;
        // foo2 is destructed and then constructs with foo1
        foo2.reset(foo1);
        std::cout << "after reset, foo2 use_count: " << foo2.use_count() << std::endl;

        std::cout << "after reset, foo1: " << foo1 << ", " << foo1->Get() << std::endl;
        std::cout << "after reset, foo2: " << foo2 << ", " << foo2->Get() << std::endl;

        foo1->Set(3);
        std::cout << "after foo1->Set(3), foo1: " << foo1 << ", " << foo1->Get() << std::endl;
        std::cout << "after foo1->Set(3), foo2: " << foo2 << ", " << foo2->Get() << std::endl;

        // foo2 destruct, delete foo1 buffer
    }
    std::cout << "foo1 is deleted\n";

    // error, foo1 is deleted
    std::cout << "after foo2 dtor, foo1: " << foo1 << ", " << foo1->Get() << std::endl;
}
/*
Foo(1)
foo1: 0x11b4d30, 1
Foo(2)
foo2: 0x11b51e0, 2
before reset, foo2 use_count: 1
~Foo(2)
after reset, foo2 use_count: 1
after reset, foo1: 0x11b4d30, 1
after reset, foo2: 0x11b4d30, 1
after foo1->Set(3), foo1: 0x11b4d30, 3
after foo1->Set(3), foo2: 0x11b4d30, 3
~Foo(3)
foo1 is deleted
after foo2 dtor, foo1: 0x11b4d30, 18567616
*/

例子3：分配与释放

#include <memory>
#include <iostream>

struct Foo {
    Foo() { std::cout << "Foo...\n"; }
    ~Foo() { std::cout << "~Foo...\n"; }
};

struct D {
    void operator()(Foo* p) const {
        std::cout << "Call delete from function object...\n";
        delete p;
    }
};

int main()
{
    {
        std::cout << "constructor with no managed object\n";
        std::shared_ptr<Foo> sh1; // 空的 shared_ptr
    }

    {
        std::cout << "constructor with object\n";
        std::shared_ptr<Foo> sh2(new Foo);
        std::shared_ptr<Foo> sh3(sh2);
        std::cout << sh2.use_count() << '\n';
        std::cout << sh3.use_count() << '\n';
    }

    {
        std::cout << "constructor with object and deleter\n";
        std::shared_ptr<Foo> sh4(new Foo, D());
        std::shared_ptr<Foo> sh5(new Foo, [](auto p) {
           std::cout << "Call delete from lambda...\n";
           delete p;
        });
    }
}
/*
constructor with no managed object

constructor with object
Foo...
2
2
~Foo...

constructor with object and deleter
Foo...
Foo...
Call delete from lambda...
~Foo...
Call delete from function object...
~Foo..
*/

例子4：线程安全

#include <iostream>
#include <memory>
#include <thread>
#include <chrono>
#include <mutex>

struct Base
{
    Base() { std::cout << "  Base::Base()\n"; }
    // Note: non-virtual destructor is OK here
    ~Base() { std::cout << "  Base::~Base()\n"; }
};

struct Derived: public Base
{
    Derived() { std::cout << "  Derived::Derived()\n"; }
    ~Derived() { std::cout << "  Derived::~Derived()\n"; }
};

void thr(std::shared_ptr<Base> p)  // 传值
{
    std::this_thread::sleep_for(std::chrono::seconds(1));
    std::shared_ptr<Base> lp = p; // thread-safe, even though the
                                  // shared use_count is incremented
    {
        static std::mutex io_mutex;
        std::lock_guard<std::mutex> lk(io_mutex);
        std::cout << "local pointer in a thread:\n"
                  << "  lp.get() = " << lp.get()
                  << ", lp.use_count() = " << lp.use_count() << '\n';
    }
}

int main()
{
    std::shared_ptr<Base> p = std::make_shared<Derived>();

    std::cout << "Created a shared Derived (as a pointer to Base)\n"
              << "  p.get() = " << p.get()
              << ", p.use_count() = " << p.use_count() << '\n';

    std::thread t1(thr, p), t2(thr, p), t3(thr, p); // 传值

    p.reset(); // release ownership from main
    std::cout << "Shared ownership between 3 threads and released\n"
              << "ownership from main:\n"
              << "  p.get() = " << p.get()
              << ", p.use_count() = " << p.use_count() << '\n';
    t1.join(); t2.join(); t3.join();
    std::cout << "All threads completed, the last one deleted Derived\n";
}

g++ -std=c++11 -lpthread test.cc

$./a.out
  Base::Base()
  Derived::Derived()
Created a shared Derived (as a pointer to Base)
  p.get() = 0x170e028, p.use_count() = 1
Shared ownership between 3 threads and released
ownership from main:
  p.get() = 0, p.use_count() = 0
local pointer in a thread:
  lp.get() = 0x170e028, lp.use_count() = 5
local pointer in a thread:
  lp.get() = 0x170e028, lp.use_count() = 3
local pointer in a thread:
  lp.get() = 0x170e028, lp.use_count() = 2
  Derived::~Derived()
  Base::~Base()
All threads completed, the last one deleted Derived

例子5：特殊用法

A shared_ptr can share ownership of an object while storing a pointer to another object. This feature can be used to point to member objects while owning the object they belong to.

template< class Y >
shared_ptr( const shared_ptr<Y>& r, element_type* ptr ) noexcept;

The aliasing constructor: constructs a shared_ptr which shares ownership information with the initial value of r, but holds an unrelated and unmanaged pointer ptr. If this shared_ptr is the last of the group to go out of scope, it will call the stored deleter for the object originally managed by r. However, calling get() on this shared_ptr will always return a copy of ptr. It is the responsibility of the programmer to make sure that this ptr remains valid as long as this shared_ptr exists, such as in the typical use cases where ptr is a member of the object managed by r or is an alias (e.g., downcast) of r.get().

另一个解释：

template <class U> shared_ptr (const shared_ptr<U>& x, element_type* p) noexcept;

The object does not own p, and will not manage its storage. Instead, it co-owns x’s managed object and counts as one additional use of x. It will also delete x’s pointer on release (and not p). It can be used to point to members of objects that are already managed.

新构造的shared_ptr对象，假设为y，与构造参数shared_ptr对象x共享x所管理的指针资源的计数，当引用计数为0时，会自动释放x关联的指针，而非element_type* p。通常用法是，y指向的是x关联对象的成员p，y不负责对p的内存释放。

测试代码：

#include <iostream>
#include <memory>

class Foo
{
public:
    Foo(int a) : m_a(a) { std::cout << "Foo(" << a << ")\n"; }
    ~Foo() { std::cout << "~Foo(" << m_a << ")\n"; }
    int Get() { return m_a; }
    void Set(int a) { m_a = a; }

public:
    int m_a;
};

int main()
{
    std::shared_ptr<Foo> foo = std::make_shared<Foo>(100);
    std::cout << "foo: " << foo.use_count() << '\n';

    std::shared_ptr<int> m(foo, &(foo.get()->m_a) );
    std::cout << *m.get() << std::endl;
    auto p_m = m.get();
    *p_m = 200;
    std::cout << foo->Get() << std::endl;
    std::cout << *m.get() << std::endl;
    std::cout << "foo: " << foo.use_count() << '\n';
    foo.reset();
    std::cout << "foo: " << foo.use_count() << '\n';
    std::cout << "m: " << m.use_count() << '\n';
}
/*
Foo(100)
foo: 1
100
200
200
foo: 2
foo: 0
m: 1
~Foo(200)
*/

#include <iostream>
#include <memory>

class Bar
{
public:
    Bar() { std::cout << "Bar()\n"; }
    Bar(int *p) : m_a_ref(p) { std::cout << "Bar()\n"; }
    ~Bar() { std::cout << "~Bar()\n"; }
public:
    int* m_a_ref;
};

class Foo
{
public:
    Foo(int a) : m_a(a) { std::cout << "Foo(" << a << ")\n"; }
    ~Foo() { std::cout << "~Foo(" << m_a << ")\n"; }
    int Get() { return m_a; }
    void Set(int a) { m_a = a; }

public:
    int m_a;
};

int main()
{
    std::shared_ptr<Foo> foo = std::make_shared<Foo>(100);
    std::cout << "foo: " << foo.use_count() << '\n';

    std::shared_ptr<Bar> bar(foo, new Bar(&(foo.get()->m_a)) ); // memory leak !
    std::cout << "foo: " << foo.use_count() << '\n';
    foo.reset();
    std::cout << "foo: " << foo.use_count() << '\n';
    std::cout << "bar: " << bar.use_count() << '\n';
    std::cout << *bar.get()->m_a_ref << std::endl;

}
/*
Foo(100)
foo: 1
Bar()
foo: 2
foo: 0
bar: 1
100
~Foo(100)
*/

std::unique_ptr

参考：https://en.cppreference.com/w/cpp/memory/unique_ptr

例子1: 构造初始化

#include <iostream>
#include <memory>

struct Foo { // object to manage
    Foo() { std::cout << "Foo ctor\n"; }
    Foo(const Foo&) { std::cout << "Foo copy ctor\n"; }
    Foo(Foo&&) { std::cout << "Foo move ctor\n"; }
    ~Foo() { std::cout << "~Foo dtor\n"; }
};

struct D { // deleter
    D() {};
    D(const D&) { std::cout << "D copy ctor\n"; }
    D(D&) { std::cout << "D non-const copy ctor\n";}
    D(D&&) { std::cout << "D move ctor \n"; }
    void operator()(Foo* p) const {
        std::cout << "D is deleting a Foo\n";
        delete p;
    };
};

int main()
{
    std::cout << "Example constructor(1)...\n";
    std::unique_ptr<Foo> up1;  // up1 is empty
    std::unique_ptr<Foo> up1b(nullptr);  // up1b is empty

    std::cout << "Example constructor(2)...\n";
    {
        std::unique_ptr<Foo> up2(new Foo); //up2 now owns a Foo
    } // Foo deleted

    std::cout << "Example constructor(3)...\n";
    D d;
    {  // deleter type is not a reference
       std::unique_ptr<Foo, D> up3(new Foo, d); // deleter copied
    }
    {  // deleter type is a reference
       std::unique_ptr<Foo, D&> up3b(new Foo, d); // up3b holds a reference to d
    }

    std::cout << "Example constructor(4)...\n";
    {  // deleter is not a reference
       std::unique_ptr<Foo, D> up4(new Foo, D()); // deleter moved
    }

    std::cout << "Example constructor(5)...\n";
    {
       std::unique_ptr<Foo> up5a(new Foo);
       std::unique_ptr<Foo> up5b(std::move(up5a)); // ownership transfer
    }

    std::cout << "Example constructor(6)...\n";
    {
        std::unique_ptr<Foo, D> up6a(new Foo, d); // D is copied
        std::unique_ptr<Foo, D> up6b(std::move(up6a)); // D is moved

        std::unique_ptr<Foo, D&> up6c(new Foo, d); // D is a reference
        std::unique_ptr<Foo, D> up6d(std::move(up6c)); // D is copied
    }

#if (__cplusplus < 201703L)
    std::cout << "Example constructor(7)...\n";
    {
        std::auto_ptr<Foo> up7a(new Foo);
        std::unique_ptr<Foo> up7b(std::move(up7a)); // ownership transfer
    }
#endif

    std::cout << "Example array constructor...\n";
    {
        std::unique_ptr<Foo[]> up(new Foo[3]);
    } // three Foo objects deleted
}

输出结果：

Example constructor(1)...
Example constructor(2)...
Foo ctor
~Foo dtor
Example constructor(3)...
Foo ctor
D copy ctor
D is deleting a Foo
~Foo dtor
Foo ctor
D is deleting a Foo
~Foo dtor
Example constructor(4)...
Foo ctor
D move ctor
D is deleting a Foo
~Foo dtor
Example constructor(5)...
Foo ctor
~Foo dtor
Example constructor(6)...
Foo ctor
D copy ctor
D move ctor
Foo ctor
D non-const copy ctor
D is deleting a Foo
~Foo dtor
D is deleting a Foo
~Foo dtor
Example constructor(7)...
Foo ctor
~Foo dtor
Example array constructor...
Foo ctor
Foo ctor
Foo ctor
~Foo dtor
~Foo dtor
~Foo dtor

例子2: 基本用法

#include <cassert>
#include <cstdio>
#include <fstream>
#include <iostream>
#include <memory>
#include <stdexcept>

// helper class for runtime polymorphism demo below
struct B
{
    virtual ~B() = default;

    virtual void bar() { std::cout << "B::bar\n"; }
};

struct D : B
{
    D() { std::cout << "D::D\n"; }
    ~D() { std::cout << "D::~D\n"; }

    void bar() override { std::cout << "D::bar\n"; }
};

// a function consuming a unique_ptr can take it by value or by rvalue reference
std::unique_ptr<D> pass_through(std::unique_ptr<D> p)
{
    p->bar();
    return p;
}

// helper function for the custom deleter demo below
void close_file(std::FILE* fp)
{
    std::fclose(fp);
}

// unique_ptr-based linked list demo
struct List
{
    struct Node
    {
        int data;
        std::unique_ptr<Node> next;
    };

    std::unique_ptr<Node> head;

    ~List()
    {
        // destroy list nodes sequentially in a loop, the default destructor
        // would have invoked its `next`'s destructor recursively, which would
        // cause stack overflow for sufficiently large lists.
        while (head)
            head = std::move(head->next);
    }

    void push(int data)
    {
        head = std::unique_ptr<Node>(new Node{data, std::move(head)});
    }
};

int main()
{
    std::cout << "1) Unique ownership semantics demo\n";
    {
        // Create a (uniquely owned) resource
        std::unique_ptr<D> p = std::make_unique<D>();   // C++14

        // Transfer ownership to `pass_through`,
        // which in turn transfers ownership back through the return value
        std::unique_ptr<D> q = pass_through(std::move(p));

        // `p` is now in a moved-from 'empty' state, equal to `nullptr`
        assert(!p);
    }

    std::cout << "\n" "2) Runtime polymorphism demo\n";
    {
        // Create a derived resource and point to it via base type
        std::unique_ptr<B> p = std::make_unique<D>();

        // Dynamic dispatch works as expected
        p->bar();
    }

    std::cout << "\n" "3) Custom deleter demo\n";
    std::ofstream("demo.txt") << 'x'; // prepare the file to read
    {
        using unique_file_t = std::unique_ptr<std::FILE, decltype(&close_file)>;
        unique_file_t fp(std::fopen("demo.txt", "r"), &close_file);
        if (fp)
            std::cout << char(std::fgetc(fp.get())) << '\n';
    } // `close_file()` called here (if `fp` is not null)

    std::cout << "\n" "4) Custom lambda-expression deleter and exception safety demo\n";
    try
    {
        std::unique_ptr<D, void(*)(D*)> p(new D, [](D* ptr)
        {
            std::cout << "destroying from a custom deleter...\n";
            delete ptr;
        });

        throw std::runtime_error(""); // `p` would leak here if it were instead a plain pointer
    }
    catch (const std::exception&) { std::cout << "Caught exception\n"; }

    std::cout << "\n" "5) Array form of unique_ptr demo\n";
    {
        std::unique_ptr<D[]> p(new D[3]);
    } // `D::~D()` is called 3 times

    std::cout << "\n" "6) Linked list demo\n";
    {
        List wall;
        for (int beer = 0; beer != 1'000'000; ++beer)   // C++14
            wall.push(beer);

        std::cout << "1'000'000 bottles of beer on the wall...\n";
    } // destroys all the beers
}

输出结果：

1) Unique ownership semantics demo
D::D
D::bar
D::~D

2) Runtime polymorphism demo
D::D
D::bar
D::~D

3) Custom deleter demo
x

4) Custom lambda-expression deleter and exception safety demo
D::D
destroying from a custom deleter...
D::~D
Caught exception

5) Array form of unique_ptr demo
D::D
D::D
D::D
D::~D
D::~D
D::~D

6) Linked list demo
1'000'000 bottles of beer on the wall...

std::weak_ptr

参考：https://en.cppreference.com/w/cpp/memory/weak_ptr

#include <iostream>
#include <memory>

std::weak_ptr<int> gw;

void observe()
{
    std::cout << "use_count == " << gw.use_count() << ": ";

    // lock: creates a shared_ptr that manages the referenced object
    if (auto spt = gw.lock()) { // Has to be copied into a shared_ptr before usage
        std::cout << *spt << "\n";
    }
    else {
        std::cout << "gw is expired\n";
    }
}

int main()
{
  {
    auto sp = std::make_shared<int>(42);
    gw = sp;
    observe();
  }
  observe();
}

输出结果：

use_count == 1: 42
use_count == 0: gw is expired

Tips

自定义 custom_deleter

#include <iostream>
#include <memory>
#include <set>

std::set<void*> g_objects;

template<typename T>
void custom_deleter(T* ptr) {
    g_objects.insert(ptr);
    std::cout << "Object " << ptr << " created." << std::endl;
    delete ptr;
    g_objects.erase(ptr);
    std::cout << "Object " << ptr << " destroyed." << std::endl;
}

int main() {
    {
        std::shared_ptr<int> p1(new int(42), custom_deleter<int>);
        std::shared_ptr<int> p2(new int(100), custom_deleter<int>);
        std::shared_ptr<int> p3(p2);
        std::cout << "p1.use_count() = " << p1.use_count() << std::endl;
        std::cout << "p2.use_count() = " << p2.use_count() << std::endl;
        std::cout << "p3.use_count() = " << p3.use_count() << std::endl;
    }
    std::cout << "Objects still held: " << g_objects.size() << std::endl;
    for (auto obj : g_objects) {
        std::cout << "Object " << obj << " still held." << std::endl;
    }
    return 0;
}

输出：

p1.use_count() = 1
p2.use_count() = 2
p3.use_count() = 2
Object 0xb21f00 created.
Object 0xb21f00 destroyed.
Object 0xb21eb0 created.
Object 0xb21eb0 destroyed.
Objects still held: 0

检查 shared_ptr 对象是否被释放

使用 std::weak_ptr，它是一种弱引用智能指针，可以用来检查 std::shared_ptr 对象是否已经被释放。参考：https://en.cppreference.com/w/cpp/memory/weak_ptr/lock

#include <iostream>
#include <memory>

void observe(std::weak_ptr<int> weak)
{
    if (auto observe = weak.lock()) {
        std::cout << "\tobserve() able to lock weak_ptr<>, value=" << *observe << "\n";
    } else {
        std::cout << "\tobserve() unable to lock weak_ptr<>\n";
    }
}

int main()
{
    std::weak_ptr<int> weak;
    std::cout << "weak_ptr<> not yet initialized\n";
    observe(weak);

    {
        auto shared = std::make_shared<int>(42);
        weak = shared;
        std::cout << "weak_ptr<> initialized with shared_ptr.\n";
        observe(weak);
    }

    std::cout << "shared_ptr<> has been destructed due to scope exit.\n";
    observe(weak);
}

输出：

weak_ptr<> not yet initialized
        observe() unable to lock weak_ptr<>
weak_ptr<> initialized with shared_ptr.
        observe() able to lock weak_ptr<>, value=42
shared_ptr<> has been destructed due to scope exit.
        observe() unable to lock weak_ptr<>

#include <iostream>
#include <memory>
#include <vector>

std::vector<std::weak_ptr<int>> g_weak_objects;

void check_objects() {
    std::cout << "Checking objects..." << std::endl;
    for (auto obj : g_weak_objects) {
        if (auto p = obj.lock()) {
            std::cout << "Object " << *p << " still held." << std::endl;
        } else {
            std::cout << "Object has been released." << std::endl;
        }
    }
}

int main() {
    {
        auto p1 = std::make_shared<int>(42);
        auto p2 = std::make_shared<int>(100);
        auto p3 = p2;

        g_weak_objects.emplace_back(p1);
        g_weak_objects.emplace_back(p2);
        g_weak_objects.emplace_back(p3);

        std::cout << "p1.use_count() = " << p1.use_count() << std::endl;
        std::cout << "p2.use_count() = " << p2.use_count() << std::endl;
        std::cout << "p3.use_count() = " << p3.use_count() << std::endl;
    }

    check_objects();

    return 0;
}

输出：

p1.use_count() = 1
p2.use_count() = 2
p3.use_count() = 2
Checking objects...
Object has been released.
Object has been released.
Object has been released.

Reference

• Technical Report on C++ Performance
• The Real Price of Shared Pointers in C++ - Nico Josuttis
• CppCon 2019: Chandler Carruth “There Are No Zero-cost Abstractions
• CppCon 2019: Chandler Carruth “There Are No Zero-cost Abstractions, unique_ptr 部分
