TCP 核心思想：带重传的累积正向应答

  1. Cumulative positive acknowledgement with retransmission
  2. Flow control (sliding window)
  3. Congestion control

2 & 3 are optional ! Really ?!

TCP/IP 协议中的拥塞控制和流量控制都是为了保证网络传输的可靠性和效率，但它们的目的和实现方式有所不同。

拥塞控制是为了防止网络拥塞，即当网络中的数据流量过大时，导致网络性能下降或数据丢失。拥塞控制的目的是通过限制发送方的数据发送速率，以避免网络拥塞。TCP 协议中的拥塞控制算法包括慢启动、拥塞避免、快速重传和快速恢复等。

流量控制是为了防止接收方无法处理发送方发送的数据，即当接收方处理速度较慢时，导致数据丢失或缓存溢出。流量控制的目的是通过限制发送方的数据发送速率，以避免接收方无法处理数据。TCP 协议中的流量控制使用了滑动窗口机制，接收方通过发送窗口大小告诉发送方可以接收的数据量，发送方根据接收方的窗口大小来控制发送速率。

因此，拥塞控制和流量控制都是为了保证网络传输的可靠性和效率，但拥塞控制是为了避免网络拥塞，而流量控制是为了避免接收方无法处理数据。

正确使用 TCP/IP 首要原则：别添乱

  • 不要轻易相信网上来路不明，相互抄袭，似是而非，以讹传讹的过时“调优”经验

例如，Buffer auto-tuning: don’t set SNDBUF/RCVBUF unless you want to reduce them

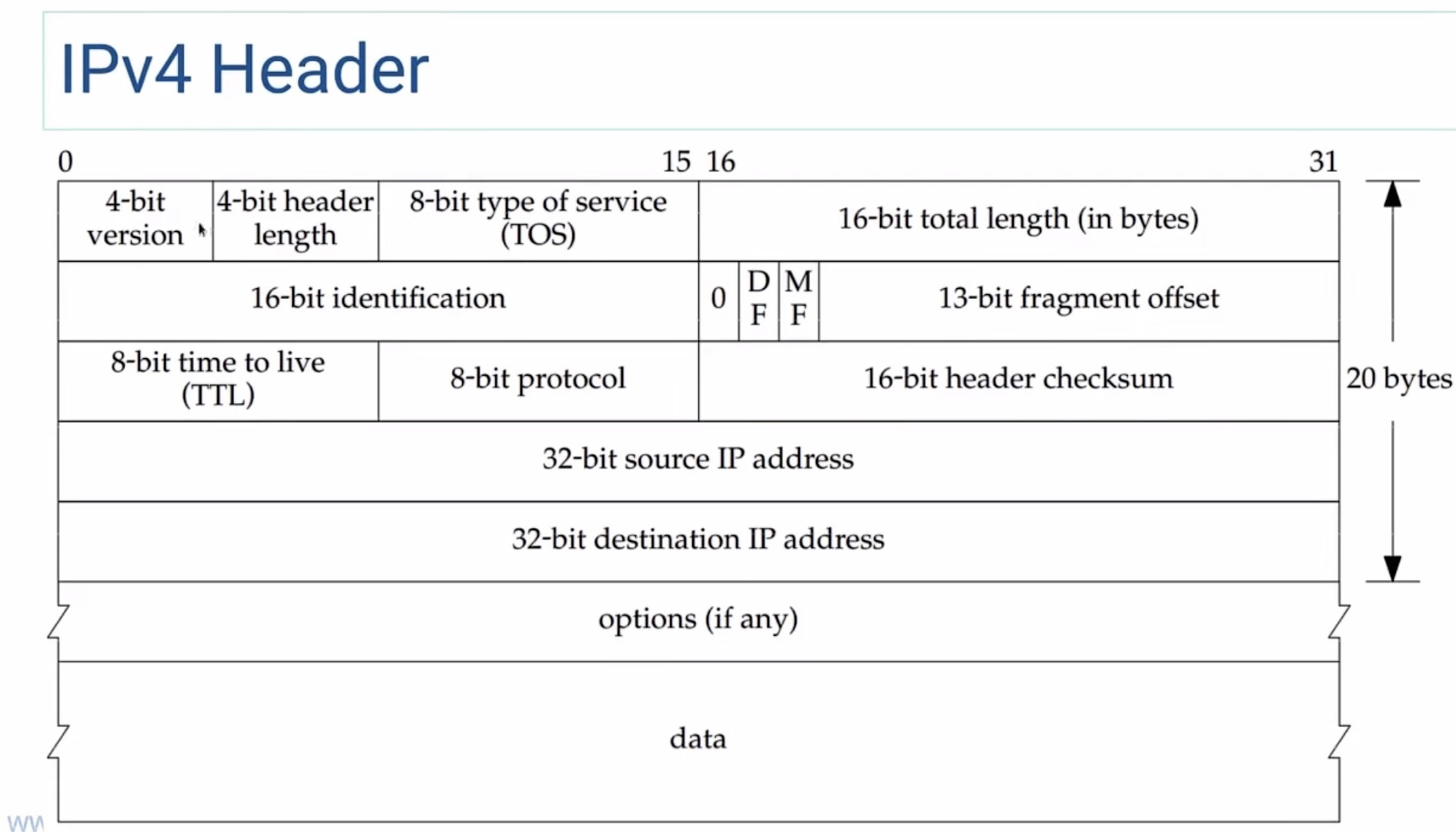

IPv4 Header

ipv4header

TCP Header

tcpheader

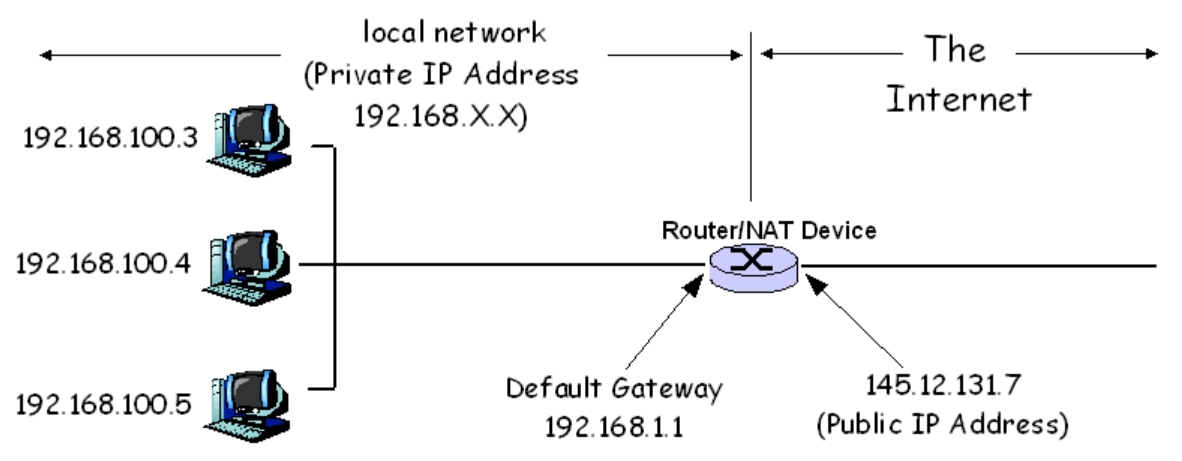

Network address

network_address

A network address is an identifier for a node or host on a telecommunications network. Network addresses are designed to be unique identifiers across the network, although some networks allow for local, private addresses, or locally administered addresses that may not be unique. Special network addresses are allocated as broadcast or multicast addresses. These too are not unique.

In some cases, network hosts may have more than one network address. For example, each network interface controller may be uniquely identified. Further, because protocols are frequently layered, more than one protocol’s network address can occur in any particular network interface or node and more than one type of network address may be used in any one network.

Network addresses can be flat addresses which contain no information about the node’s location in the network (such as a MAC address), or may contain structure or hierarchical information for the routing (such as an IP address).

  • https://en.wikipedia.org/wiki/Network_address

DataStruct

sockaddr_in

struct sockaddr_in {
    sa_family_t    sin_family; /* address family: AF_INET */
    in_port_t      sin_port;   /* port in network byte order */
    struct in_addr sin_addr;   /* internet address */
};

/* Internet address */
struct in_addr {
    uint32_t       s_addr;     /* address in network byte order */
};
  • https://man7.org/linux/man-pages/man7/ip.7.html

hostent

The hostent structure is defined in <netdb.h> as follows:

struct hostent {
    char  *h_name;            /* official name of host */
    char **h_aliases;         /* alias list */
    int    h_addrtype;        /* host address type */
    int    h_length;          /* length of address */
    char **h_addr_list;       /* list of addresses */
}
#define h_addr h_addr_list[0] /* for backward compatibility */

The members of the hostent structure are:

  • h_name The official name of the host.
  • h_aliases An array of alternative names for the host, terminated by a null pointer.
  • h_addrtype The type of address; always AF_INET or AF_INET6 at present.
  • h_length The length of the address in bytes.
  • h_addr_list An array of pointers to network addresses for the host (in network byte order), terminated by a null pointer.

  • h_addr The first address in h_addr_list for backward compatibility.

  • https://man7.org/linux/man-pages/man3/gethostbyname.3.html

addrinfo

The addrinfo structure used by getaddrinfo() contains the following fields:

struct addrinfo {
    int              ai_flags;
    int              ai_family;
    int              ai_socktype;
    int              ai_protocol;
    socklen_t        ai_addrlen;
    struct sockaddr *ai_addr;
    char            *ai_canonname;
    struct addrinfo *ai_next;
};
  • https://man7.org/linux/man-pages/man3/getaddrinfo.3.html

Options (socket)

SO_SNDBUF

Sets or gets the maximum socket send buffer in bytes. The kernel doubles this value (to allow space for bookkeeping overhead) when it is set using setsockopt(2), and this doubled value is returned by getsockopt(2). The default value is set by the /proc/sys/net/core/wmem_default file and the maximum allowed value is set by the /proc/sys/net/core/wmem_max file. The minimum (doubled) value for this option is 2048.

SO_RCVBUF

Sets or gets the maximum socket receive buffer in bytes. The kernel doubles this value (to allow space for bookkeeping overhead) when it is set using setsockopt(2), and this doubled value is returned by getsockopt(2). The default value is set by the /proc/sys/net/core/rmem_default file, and the maximum allowed value is set by the /proc/sys/net/core/rmem_max file. The minimum (doubled) value for this option is 256.

NOTES: Linux assumes that half of the send/receive buffer is used for internal kernel structures; thus the sysctls are twice what can be observed on the wire.

Interface

connect

connect - initiate a connection on a socket

non-blocking connect

解释1:

You should use the following steps for an non-blocking connect:

  • create socket with socket(..., SOCK_NONBLOCK, ...)
  • start connection with connect(fd, ...)
  • if return value is neither 0 nor EINPROGRESS, then abort with error
  • wait until fd is signalled as ready for output
  • check status of socket with getsockopt(fd, SOL_SOCKET, SO_ERROR, ...)
  • done

No loops - unless you want to handle EINTR.

If the client is started first, you should see the error ECONNREFUSED in the last step. If this happens, close the socket and start from the beginning.

解释2:

Situation: You set up a non-blocking socket and do a connect() that returns -1/EINPROGRESS or -1/EWOULDBLOCK. You select() the socket for writability. This returns as soon as the connection succeeds or fails. (Exception: Under some old versions of Ultrix, select() wouldn’t notice failure before the 75-second timeout.)

Question: What do you do after select() returns writability? Did the connection fail? If so, how did it fail?

If the connection failed, the reason is hidden away inside something called so_error in the socket. Modern systems let you see so_error with getsockopt(,,SO_ERROR,,), but this isn’t portable—in fact, getsockopt() can crash old systems. A different way to see so_error is through error slippage: any attempt to read or write data on the socket will return -1/so_error.

Sometimes you have data to immediately write to the connection. Then you can just write() the data. If connect() failed, the failure will be reported by write(), usually with the right connect() errno. This is the solution I supplied for IRC in 1990. Unfortunately, on some systems, under some circumstances, write() will substitute EPIPE for the old errno, so you lose information.

Another possibility is read(fd,&ch,0). If connect() succeeded, you get a 0 return value, except under Solaris, where you get -1/EAGAIN. If connect() failed, you should get the right errno through error slippage. Fatal flaw: under Linux, you will always get 0.

…

send

send, sendto, sendmsg - send a message on a socket

DESCRIPTION

The system calls send(), sendto(), and sendmsg() are used to transmit a message to another socket.

The send() call may be used only when the socket is in a connected state (so that the intended recipient is known). The only difference between send() and write(2) is the presence of flags. With a zero flags argument, send() is equivalent to write(2).

recv

recv, recvfrom, recvmsg - receive a message from a socket

DESCRIPTION

The recv(), recvfrom(), and recvmsg() calls are used to receive messages from a socket. They may be used to receive data on both connectionless and connection-oriented sockets.

The only difference between recv() and read(2) is the presence of flags. With a zero flags argument, recv() is generally equivalent to read(2) (but see NOTES).

Also, the following call recv(sockfd, buf, len, flags); is equivalent to recvfrom(sockfd, buf, len, flags, NULL, NULL);

All three calls return the length of the message on successful completion. If a message is too long to fit in the supplied buffer, excess bytes may be discarded depending on the type of socket the message is received from.

If no messages are available at the socket, the receive calls wait for a message to arrive, unless the socket is nonblocking (see fcntl(2)), in which case the value -1 is returned and errno is set to EAGAIN or EWOULDBLOCK. The receive calls normally return any data available, up to the requested amount, rather than waiting for receipt of the full amount requested.

An application can use select(2), poll(2), or epoll(7) to determine when more data arrives on a socket.

select

select, pselect, FD_CLR, FD_ISSET, FD_SET, FD_ZERO - synchronous I/O multiplexing

int select(int nfds,
            fd_set *restrict readfds,
            fd_set *restrict writefds,
            fd_set *restrict exceptfds,
            struct timeval *restrict timeout);

DESCRIPTION

WARNING: select() can monitor only file descriptors numbers that are less than FD_SETSIZE (1024)—an unreasonably low limit for many modern applications—and this limitation will not change. All modern applications should instead use poll(2) or epoll(7), which do not suffer this limitation.

select() allows a program to monitor multiple file descriptors, waiting until one or more of the file descriptors become “ready” for some class of I/O operation (e.g., input possible). A file descriptor is considered ready if it is possible to perform a corresponding I/O operation (e.g., read(2), or a sufficiently small write(2)) without blocking.

nfds

This argument should be set to the highest-numbered file descriptor in any of the three sets, plus 1.  The indicated file descriptors in each set are checked, up to this limit (but see BUGS).

BUGS

POSIX allows an implementation to define an upper limit, advertised via the constant FD_SETSIZE, on the range of file descriptors that can be specified in a file descriptor set.  The Linux kernel imposes no fixed limit, but the glibc implementation makes fd_set a fixed-size type, with FD_SETSIZE defined as 1024, and the FD_*() macros operating according to that limit.  To monitor file descriptors greater than 1023, use poll(2) or epoll(7) instead.
  • https://man7.org/linux/man-pages/man2/select.2.html

poll

#include <poll.h>

int poll(struct pollfd *fds, nfds_t nfds, int timeout);

poll() performs a similar task to select(2): it waits for one of a set of file descriptors to become ready to perform I/O. The Linux-specific epoll(7) API performs a similar task, but offers features beyond those found in poll().

The set of file descriptors to be monitored is specified in the fds argument, which is an array of structures of the following form:

struct pollfd {
    int   fd;         /* file descriptor */
    short events;     /* requested events */
    short revents;    /* returned events */
};

The caller should specify the number of items in the fds array in nfds.

  • https://man7.org/linux/man-pages/man2/poll.2.html

getsockopt

getsockopt, setsockopt - get and set options on sockets

DESCRIPTION

getsockopt() and setsockopt() manipulate options for the socket referred to by the file descriptor sockfd. Options may exist at multiple protocol levels; they are always present at the uppermost socket level.

  • https://man7.org/linux/man-pages/man2/getsockopt.2.html

getaddrinfo

int getaddrinfo(const char *restrict node,
                const char *restrict service,
                const struct addrinfo *restrict hints,
                struct addrinfo **restrict res);

Given node and service, which identify an Internet host and a service, getaddrinfo() returns one or more addrinfo structures, each of which contains an Internet address that can be specified in a call to bind(2) or connect(2). The getaddrinfo() function combines the functionality provided by the gethostbyname(3) and getservbyname(3) functions into a single interface, but unlike the latter functions, getaddrinfo() is reentrant and allows programs to eliminate IPv4-versus-IPv6 dependencies.

getaddrinfo() is used to translate a domain name, like stackoverflow.com, to an IP address like 69.59.196.211.

For more info, here’s how it works in detail: What does getaddrinfo do?

TL;DR it runs through /etc/nsswitch.conf, and uses whatever modules are listed in there to resolve the path. Usually this is hosts: files myhostname dns, when it finally hits the dns module it dynamically loads that library and then that does the DNS lookup by looking at /etc/hosts and /etc/resolv.conf.

测试代码：

https://wandbox.org/permlink/lLxsF1NqXamWodoF

#include <stdio.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netdb.h>
#include <arpa/inet.h>

int main(void)
{
  struct addrinfo* addr;
  int result = getaddrinfo("google.com", NULL, NULL, &addr);
  if (result != 0) {
    printf("Error from getaddrinfo: %s\n", gai_strerror(result));
    return 1;
  }
  struct sockaddr_in* internet_addr = (struct sockaddr_in*) addr->ai_addr;
  printf("google.com is at: %s\n", inet_ntoa(internet_addr->sin_addr));
  freeaddrinfo(addr);
  return 0;
}

$./a.out
google.com is at: 172.217.163.46

gethostbyname

#include <stdio.h>
#include <netdb.h>

int main()
{
    struct hostent *lh = gethostbyname("localhost");
    if (lh) {
        puts(lh->h_name);
        printf("%u.%u.%u.%u\n", lh->h_addr_list[0][0],
                        lh->h_addr_list[0][1],
                        lh->h_addr_list[0][2],
                        lh->h_addr_list[0][3]);
    } else {
        herror("gethostbyname");
    }
}
/*
localhost
127.0.0.1
*/
  • https://man7.org/linux/man-pages/man3/gethostbyname.3.html

getpeername

#include <sys/socket.h>

int getpeername(int sockfd, struct sockaddr *restrict addr,
                socklen_t *restrict addrlen);

getpeername() returns the address of the peer connected to the socket sockfd, in the buffer pointed to by addr. The addrlen argument should be initialized to indicate the amount of space pointed to by addr. On return it contains the actual size of the name returned (in bytes). The name is truncated if the buffer provided is too small.

The returned address is truncated if the buffer provided is too small; in this case, addrlen will return a value greater than was supplied to the call.

  • https://man7.org/linux/man-pages/man2/getpeername.2.html

epoll

Don’t include EPOLLOUT unless you got EAGAIN from a write attempt, and remove it when you have successfully written bytes to a socket. This basically means that socket is always writable as long as there’s space in socket in-kernel send buffer.

You have two data streams - input and output.

You are waiting for the input by including EPOLLIN in the flags. If upon return from epoll_wait(2) that flag is not set, then either some event happened on some other socket, or this socket had some other event. Leave the flag in the events unless you get an error (meaning you are still interested in the input on the socket).

You don’t have to wait for the output (since it’s your action), you just write to the socket, but if you overflow socket send buffer, you’ll get EAGAIN from send(2) or write(2). In this case you start waiting for output to be possible (kernel draining socket send buffer thus making room for you to send more) by including EPOLLOUT. Once you get that, write your pending output bytes to the socket, and if you are successful, remove EPOLLOUT from the events.

Now EPOLLET indicates edge-triggered wait, meaning your desired event would only be signaled once per state change (like from “no input” to “there’s input”). In this mode you are supposed to read input bytes in a loop until you get EAGAIN.

  • https://man7.org/linux/man-pages/man7/epoll.7.html
  • https://stackoverflow.com/questions/13568858/epoll-wait-always-sets-epollout-bit

epoll_ctl

int epoll_ctl(int epfd, int op, int fd, struct epoll_event *event);

The event argument describes the object linked to the file descriptor fd. The struct epoll_event is defined as:

typedef union epoll_data {
    void        *ptr;
    int          fd;
    uint32_t     u32;
    uint64_t     u64;
} epoll_data_t;

struct epoll_event {
    uint32_t     events;      /* Epoll events */
    epoll_data_t data;        /* User data variable */
};

The data member of the epoll_event structure specifies data that the kernel should save and then return (via epoll_wait(2)) when this file descriptor becomes ready.

The events member of the epoll_event structure is a bit mask composed by ORing together zero or more of the following available event types:

  • EPOLLIN: The associated file is available for read(2) operations.
  • EPOLLOUT: The associated file is available for write(2) operations.
  • EPOLLRDHUP (since Linux 2.6.17): Stream socket peer closed connection, or shut down writing half of connection. (This flag is especially useful for writing simple code to detect peer shutdown when using edge-triggered monitoring.)
  • EPOLLPRI: There is an exceptional condition on the file descriptor. See the discussion of POLLPRI in poll(2).
  • EPOLLERR: Error condition happened on the associated file descriptor. This event is also reported for the write end of a pipe when the read end has been closed. epoll_wait(2) will always report for this event; it is not necessary to set it in events when calling epoll_ctl().
  • EPOLLHUP: Hang up happened on the associated file descriptor. epoll_wait(2) will always wait for this event; it is not necessary to set it in events when calling epoll_ctl(). Note that when reading from a channel such as a pipe or a stream socket, this event merely indicates that the peer closed its end of the channel. Subsequent reads from the channel will return 0 (end of file) only after all outstanding data in the channel has been consumed.
  • EPOLLET: Requests edge-triggered notification for the associated file descriptor. The default behavior for epoll is level-triggered. See epoll(7) for more detailed information about edge-triggered and level-triggered notification. This flag is an input flag for the event.events field when calling epoll_ctl(); it is never returned by epoll_wait(2).
  • EPOLLONESHOT (since Linux 2.6.2): Requests one-shot notification for the associated file descriptor. This means that after an event notified for the file descriptor by epoll_wait(2), the file descriptor is disabled in the interest list and no other events will be reported by the epoll interface. The user must call epoll_ctl() with EPOLL_CTL_MOD to rearm(重新装备) the file descriptor with a new event mask. This flag is an input flag for the event.events field when calling epoll_ctl(); it is never returned by epoll_wait(2).
  • EPOLLWAKEUP (since Linux 3.5)
  • EPOLLEXCLUSIVE (since Linux 4.5)

refer:

  • https://man7.org/linux/man-pages/man2/epoll_ctl.2.html
  • https://cloud.tencent.com/developer/article/1481046

Nagle 算法

Nagle 算法主要用来预防小分组的产生。在广域网上，大量 TCP 小分组极有可能造成网络的拥塞。Nagle 是针对每一个 TCP 连接的。它要求一个 TCP 连接上最多只能有一个未被确认的小分组。在该分组的确认到达之前不能发送其他小分组。TCP 会搜集这些小的分组，然后在之前小分组的确认到达后将刚才搜集的小分组合并发送出去。

有时候必须要关闭 Nagle 算法，特别是在一些对时延要求较高的交互式操作环境中，所有的小分组必须尽快发送出去。可以通过编程取消 Nagle 算法，利用 TCP_NODELAY 选项来关闭 Nagle 算法。

Nagle 算法是时代的产物，因为当时网络带宽有限。而当前的局域网、广域网的带宽则宽裕得多，所以目前的 TCP/IP 协议栈默认将 Nagle 算法关闭。

  • https://cloud.tencent.com/developer/article/1784570

Tools

EaseProbe

EaseProbe is a simple, standalone, and lightweight tool that can do health/status checking, written in Go.

Q&A

How to convert string to IP address and vice versa

Use inet_ntop() and inet_pton() if you need it other way around. Do not use inet_ntoa(), inet_aton() and similar as they are deprecated and don’t support ipv6.

// IPv4 demo of inet_ntop() and inet_pton()

struct sockaddr_in sa;
char str[INET_ADDRSTRLEN];

// store this IP address in sa:
inet_pton(AF_INET, "192.0.2.33", &(sa.sin_addr));

// now get it back and print it
inet_ntop(AF_INET, &(sa.sin_addr), str, INET_ADDRSTRLEN);

printf("%s\n", str); // prints "192.0.2.33"

When is TCP option SO_LINGER (0) required?

The typical reason to set a SO_LINGER timeout of zero is to avoid large numbers of connections sitting in the TIME_WAIT state, tying up all the available resources on a server.

When a TCP connection is closed cleanly, the end that initiated the close (“active close”) ends up with the connection sitting in TIME_WAIT for several minutes. So if your protocol is one where the server initiates the connection close, and involves very large numbers of short-lived connections, then it might be susceptible to this problem.

This isn’t a good idea, though - TIME_WAIT exists for a reason (to ensure that stray packets from old connections don’t interfere with new connections). It’s a better idea to redesign your protocol to one where the client initiates the connection close, if possible.
