Infer in Action
- Getting started with Infer
- Hello, World
- Infer workflow (Version: 1.2.0)
- Analyzing apps or projects
- Examples
- Q&A
- Refer
Infer is a static analysis tool for Java, C++, Objective-C, and C. Infer is written in OCaml.
Infer
is a static analysis tool - if you give Infer some Java or C/C++/Objective-C code it produces a list of potential bugs. Anyone can use Infer to intercept critical bugs before they have shipped to users, and help prevent crashes or poor performance.
Start with the Getting Started guide and our other docs to download and try Infer
yourself. Infer
is still evolving, and we want to continue to develop it in the open. We hope it will be useful for other projects, so please try it out or contribute to it, join the community and give us feedback!
Getting started with Infer
Get Infer
You can use our binary releases, build infer from source, or use our Docker image.
Find our latest binary release here. Download the tarball then extract it anywhere on your system to start using infer. For example, this downloads infer in /opt
on Linux (replace VERSION
with the latest release, eg VERSION=1.0.0
):
VERSION=0.XX.Y; \
curl -sSL "https://github.com/facebook/infer/releases/download/v$VERSION/infer-linux64-v$VERSION.tar.xz" \
| sudo tar -C /opt -xJ && \
sudo ln -s "/opt/infer-linux64-v$VERSION/bin/infer" /usr/local/bin/infer
If the binaries do not work for you, or if you would rather build infer from source, follow the install from source instructions to install Infer on your system.
Alternatively, use our Docker images.
Try Infer in your browser
Try Infer on a small example on Codeboard.
Hello, World
Follow the instructions in this page to try Infer
on a few small examples. You should be able to see the bugs reported by Infer
, fix the bugs and run Infer
again to check that they are not reported anymore. This should give you a first idea of how Infer
works. See the User Guide for more details about the use of Infer
.
All these examples can be found in the infer/examples directory distributed with Infer.
Hello world Java
Here is a simple Java example to illustrate Infer at work.
// Hello.java
class Hello {
int test() {
String s = null;
return s.length();
}
}
To run Infer
, type the following in your terminal from the same directory as Hello.java
.
infer run -- javac Hello.java
You should see the following error reported by Infer
.
Hello.java:5: error: NULL_DEREFERENCE
object s last assigned on line 4 could be null and is dereferenced at line 5
Now edit the file to add null checks:
int test() {
String s = null;
return s == null ? 0 : s.length();
}
Run Infer
again. This time we get no error: Infer
reports No issues found.
Hello world C
Here is a simple C example to illustrate Infer at work.
// hello.c
#include <stdlib.h>
void test() {
int *s = NULL;
*s = 42;
}
To run Infer
, type the following in your terminal from the same directory as hello.c
.
infer run -- gcc -c hello.c

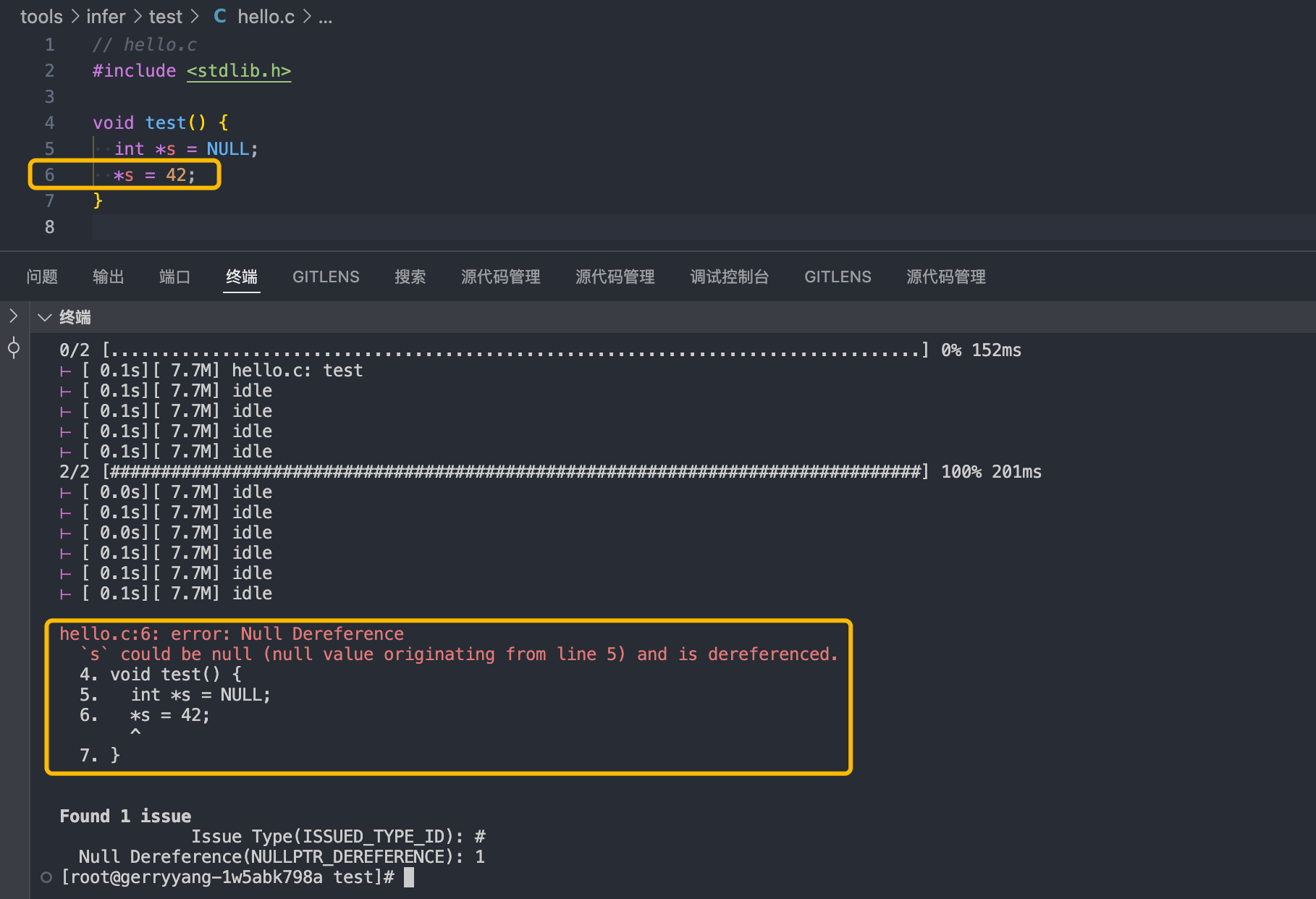

You should see the following error reported by Infer.
Now edit the file to add null checks:
void test() {
int *s = NULL;
if (s != NULL) {
*s = 42;
}
}

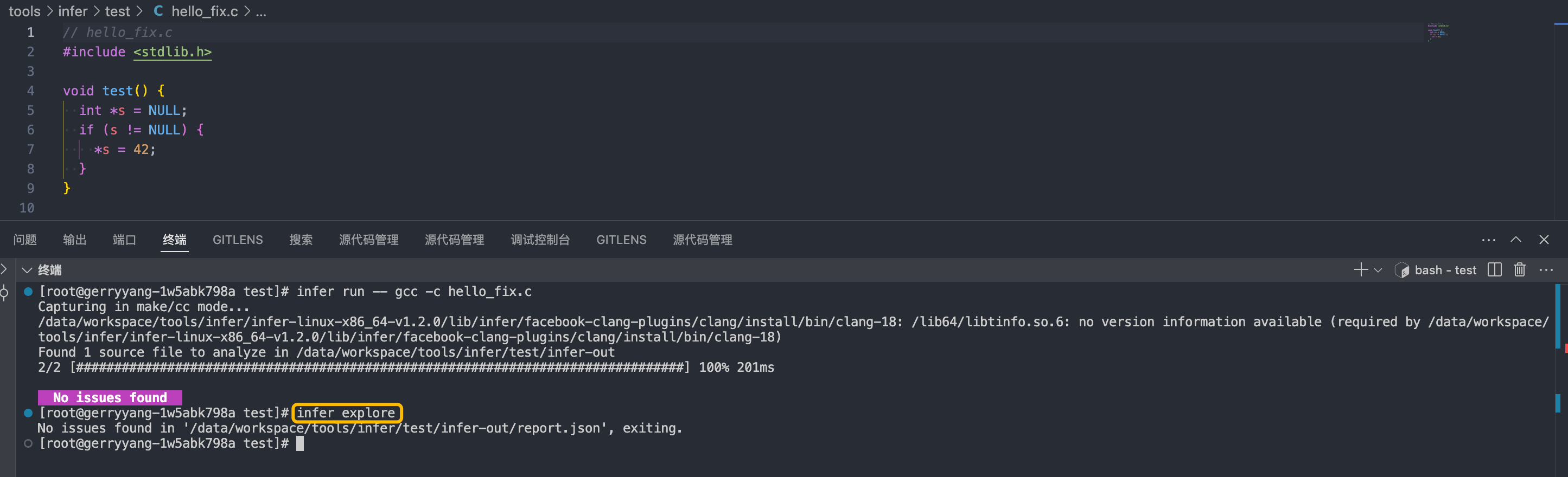

Run Infer again. This time we get no error.
When analyzing C files, Infer
captures the gcc
command and runs clang
instead to parse them. Thus you may get compiler errors and warnings that differ from gcc’s. So in particular, the following two commands are equivalent:
infer run -- gcc -c hello.c
infer run -- clang -c hello.c
Infer workflow (Version: 1.2.0)
This page documents several ways of running Infer
, that you can adapt to your own project.
TL; DR:
- Make sure your project is clean when you first run Infer on it (with
make clean
, orgradle clean
, or …). - When running
Infer
several times in a row, either clean your project as in step 1 in-betweenInfer
runs, or add--reactive
to theinfer
command. - These steps are not needed if you are not using an incremental build system, for instance if you are analyzing single files with
infer run -- javac Hello.java
. - After a successful Infer run, you can explore Infer’s reports in more details by running
infer explore
from the same directory.
The two phases of an Infer run
Regardless of the input language (Java, Objective-C, or C), there are two main phases in an Infer run:
1. The capture phase
Compilation commands are captured by Infer
to translate the files to be analyzed into Infer’s own internal intermediate language.
This translation is similar to compilation, so Infer
takes information from the compilation process to perform its own translation. This is why we call infer with a compilation command: infer run -- javac File.java
or infer run -- clang -c file.c
. What happens is that the files get compiled as usual, and they also get translated by Infer
to be analyzed in the second phase. In particular, if no file gets compiled, also no file will be analyzed.
Infer
stores the intermediate files in the results directory which by default is created in the folder where the infer
command is invoked, and is called infer-out/
. You can change the name of the results directory with the option -o
, e.g.
infer run -o /tmp/out -- javac Test.java
You can run just the capture phase using the capture
subcommand instead of the run
subcommand:
infer capture -- javac Test.java
2. The analysis phase
In this phase, the files in infer-out/
are analyzed by Infer
. Infer analyzes each function and method separately. If
Infer encounters an error when analyzing a method or function, it stops there for that method or function, but will continue the analysis of other methods and functions. So, a possible workflow would be to run
Infer` on your code, fix the errors generated, and run it again to find possibly more errors or to check that all the errors have been fixed.
The errors will be displayed in the standard output and also in a file infer-out/report.txt
. We filter the bugs and show the ones that are most likely to be real.
Global (default) and differential workflows
By default, running Infer
will delete the previous infer-out/
directory if it exists. This leads to a default workflow where the entire project is analyzed every time. Passing --reactive
(or -r
) to Infer
prevents it from deleting infer-out/
, leading to a differential workflow.
There are exceptions to this. In particular, you can run only one of the phases above. For instance, infer run -- javac Hello.java
is equivalent to running these two commands:
infer capture -- javac Hello.java
infer analyze
Notice that the second command does not erase infer-out/
, as the files it needs to analyze live there!
You can learn more about the subcommands supported by Infer by running infer --help
, infer capture --help
, or more generally infer <subcommand> --help
.
Let us highlight when you may need global and differential workflows.
Global workflow
The global workflow is well suited to running Infer
on all the files in a project, e.g., for a Gradle-based project that compiles using the gradle build
command:
infer run -- gradle build
In general, running Infer on your project is as simple as running infer run -- <your build command here>
where the build command is the one you would normally use to compile your source code.
To start a fresh analysis and be sure to analyze all the files in your project, you have to clean the build products, for instance with make clean
for a make-based project, gradle clean
for Gradle, etc.
Differential workflow
Software projects such as mobile apps use incremental build systems, where code evolves as a sequence of code changes. For these projects, it can often make sense to analyze only the current changes in the project, instead of analyzing the whole project every time. It is possible to analyze only what’s changed using Infer’s reactive mode.
Exploring Infer reports
You can get more information about the reports generated by Infer by running infer explore
in the same directory. For instance
infer run -- gradle build
infer explore
This tool allows you to see error traces leading to each bug reported by Infer, which can be helpful in tracking down the precise cause of each bug. See the output of infer explore --help
for more information.
Analyzing apps or projects
To analyze files with Infer you can use the compilers javac
and clang
. You can also use Infer with gcc
, however, internally Infer will use clang
to compile your code. So, it may not work if your code does not compile with clang
.
Examples
https://github.com/facebook/infer/tree/main/examples
Q&A
any plans for bazel support ? #457
No current plans. If you have experience building Bazel plugins and are interested in contributing one for Infer, that would be awesome!
Nothing to compile. Try running make clean first. #1167
Infer keys in on a small set of possible compiler commands. Cross compilers and versioned compilers (such as gcc-6.4.1) are not in its list and won’t register as a compilation task to intercept and analyze.
Refer
- https://github.com/facebook/infer
